KA-Conductor Bar System Light

KA Aluminum / Steel / Copper Conductor Bar System

Cataloge Download:

4. KA Light I Aluminum(6101A)stainless Steel Conductor Bar System.pdf

Brief Introduction

The conductor bar is mostly used to supply power to all kinds of cranes and electrical gourd.

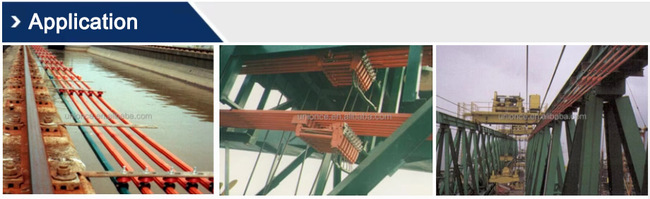

It can also supply power to some special equipments in such places as robotics, amusements parks, airport, bridges, studio, sewage& water treatment plants.

Advantages

• Safe, reliable, waterproof and dirt-proof as per IP 23 requirement.

• Save power and lessen waste, use international conductive material to reduce the loss of voltage as much as possible.

• Longer service life relying on unique formula.

• Curved conductor bar system available according to specific working condition.

• Convenient installation and daily maintenance, especially fit for aloft work.

• Can be used in seashore, acidic and alkaline atmospheres.

• Ice-removing system for frozen area.

• Conductor bar covers in PVC and PPO can adapt to different working conditions.

Technical data

Product Type		Galvanized steel			Copper			Aluminum &Stainless steel
Amperage (A)		60A	100A	125A	160A	250A	400A	200A	315A	400A
Sectional area (mm²)		50	63	93	50	63	93	104	120	157
Maximum Voltage	AC	550V	550V	550V	550V	550V	550V	550V	550V	550V
	DC	700A			700A			700A
Conductor Material		Galvanized steel			Copper			Aluminum
Material class		M Steel			T2			6101A
DC (20℃μΩ/m)		3584	2867	1933	342	274	184	301	261	199
AC (20℃μΩ/m)		3604	2891	1968	364	300	221	325	288	219
Full load permissible Temperature		25℃			25℃			25℃
Covers flame test		Self extinguish			Self extinguish			Self extinguish
Standard length of bar		4.5M			4.5M			4.5M
Standard distance between hanger clamp		1.5M			1.5M			1.5M
Minimum phase spacing		43mm			43mm			43mm
Expansion sections required for runs more than		150M			150M			150M
Minimum bend radius		1.5M			1.5M			1.5M
