KA-Aluminum-Conductor bar Heavy

KA-Aluminum-Conductor bar Heavy

Joints assembly

Cataloge Download:

KA Heavy II III Aluminum(6101A)stainless Steel Conductor Bar System.pdf

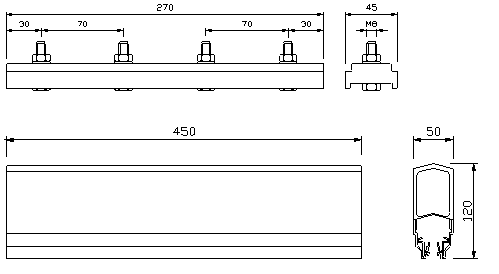

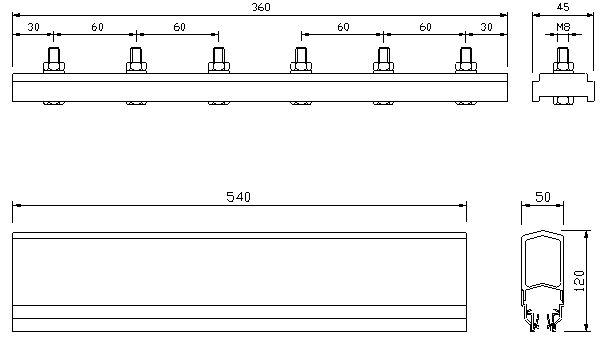

The joint plate① is in aluminum material, using 4 or 6 bolts according to the conductor bar’s specification, so it can ensure each conductor bar’s linearity and conductive continuity.

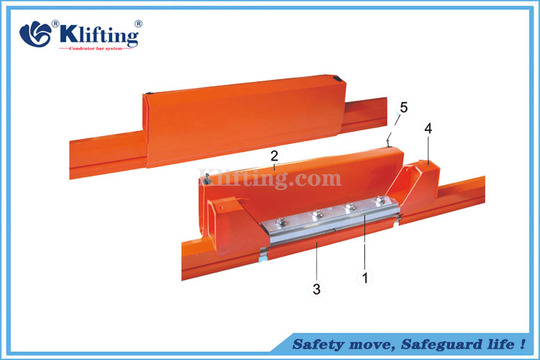

Each joints assembly include one connector cover②, two pieces of plastic holders③, two end caps④, and two plastic bolts⑤.

Joints assembly

630/800A

1000/1250A

 With standard phase sheath

181201

181204

 With standard ground sheath

181202

181205

 With medium heat sheath

181203

181206

Weight (kg)

0.75

1.05
